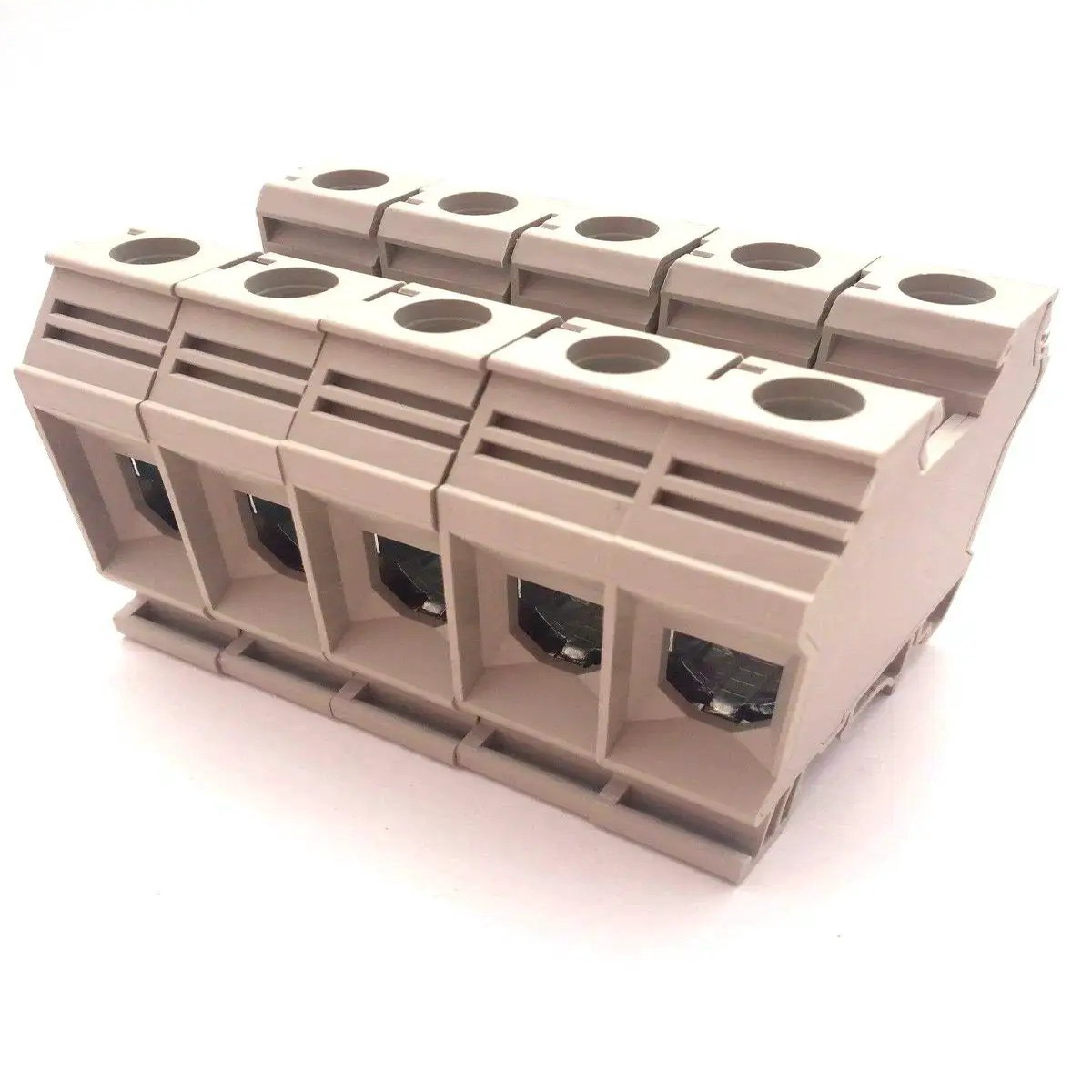

High-performance DIN rail terminal block for tough setups
UL 600V rating, 150A current, supports 1/0-12 AWG wires, compact at 16x59x55.4mm, reliable pack of 5

This DIN rail terminal block is a screw-type connector designed for secure electrical wiring in industrial control panels, machinery, and harsh environments where vibration and thermal changes are common.

UL 600V voltage rating for safe high-power applications
150A current capacity to handle demanding electrical loads
Supports 12-1/0 AWG solid and flexible wires, equivalent to 4-50 mm for versatile connectivity
Compact dimensions of 16mm x 59mm x 55.4mm (0.63in x 2.32in x 2.18in) to save space in tight setups
M6 screw with 6.9 Nm torque for strong, vibration-resistant connections
Made from insulating PA material, rated for 8kV impulse withstand in tough conditions

Why go for DIN rail terminal blocks in industrial wiring setups? They’re a solid pick for boosting reliability in electrical systems. Here’s how they stack up in real-world use: First off, they lock in wires tight to cut down on loose connections. – Prevent faults from vibrations and heat swings- Cut wiring time with easy rail mounting- Handle a wide range of wire sizes for different jobs- Boost system safety with high voltage ratings
