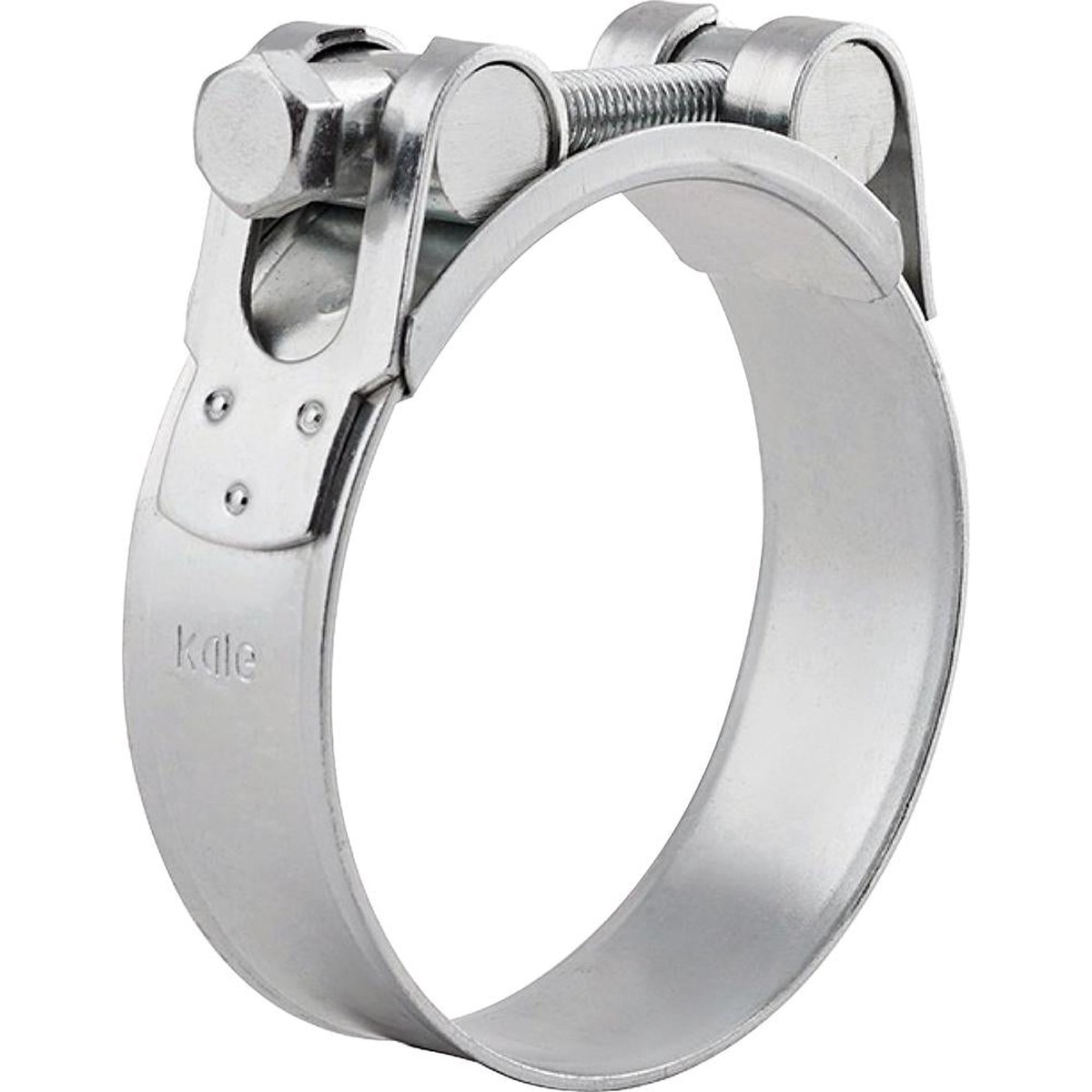

HDT25201213W4 – 25mm Band Width Heavy Duty Clamp HD25 | 201-213mm capacity | W4 Features:

– Easy mountability at application areas with simple design.

– Uniform clamping force throughout 360 degrees.

– Three-point welded durable design.

– Burr-free and convex band edges. Technical Spec:

– Band Width – 25mm

– Capacity (min – max) – 201-213mm

– Tightening Torque (max) – 20Nm

– Bolt – M8 x 90mm

– Grade W4 – Stainless Band Saddle Bolt Tube Bushing & Bolt Nut (1)

– Screw Head – 13mm Hex (1) Band & Saddle – 1.4301 DIN EN-10088-2 or equivalent | Bolt – 1.4301 DIN EN-10088-3 or equivalent | Tube – 1.4401 DIN EN-10088-2 or equivalent | Bushing & Bolt Nut – 1.4301 DIN EN-10088-2 or equivalent KALE is certified with ISO TS 16949 ISO 9001 ISO 14001 management systems as per the expectations of the global automotive industry.
